Botou Yite Environmental Protection Machinery Manufacturing Co.,Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | YITE |
| Certification : | ISO9001 |
| Supply Ability : | 500 Piece/Pieces per Year |
| Price : | $3,690.00/pieces 1-2 pieces |
•DUST COLLECTOR STRUCTURE
The structure of the cartridge filter is made into the duct, the exhaust duct, enclosure, ash hopper, soot cleaning device, guide device, flow diversion distribution board, filter cartridge, and electric control device, similar structure of air box pulse bag dust removal.
•DUST COLLECTOR SPECIFICATION
| Model | Air volume(m³/h) | Filter area(m²) | Cartridge(piece) | Body size(mm) | Weight(kg) |
| YT-03LTZ8 | 3300-7500 | 184 | 8 | 1016*2159*2159 | 1100 |
| YT-03LTZ16 | 6600-15000 | 368 | 16 | 1164*2159*2159 | 1400 |
| YT-03LTZ24 | 10000-22000 | 552 | 24 | 1695*2159*2159 | 1800 |
| YT-03LTZ32 | 13500-30000 | 736 | 32 | 2032*2159*2159 | 2400 |
| YT-03LTZ36 | 15000-33500 | 828 | 36 | 2377*2159*2159 | 3000 |
| YT-03LTZ48 | 20000-45000 | 1104 | 48 | 3136*2159*2159 | 3500 |
| YT-03LTZ64 | 28000-60000 | 1472 | 64 | 3700*2159*2159 | 5000 |

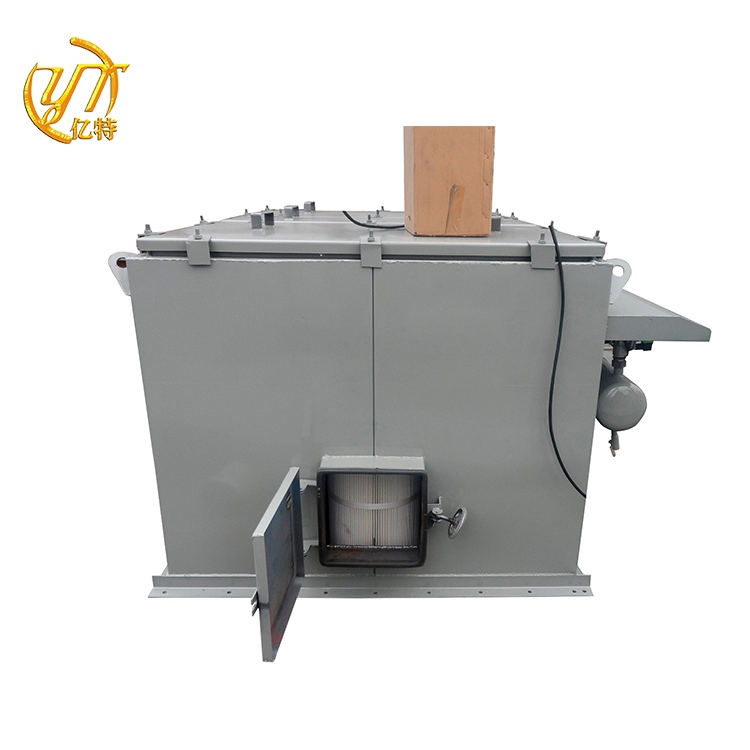

•DUST COLLECTOR PICTURE
•DUST COLLECTOR DETAILS
•DUST COLLECTOR FEATURE
1. It is very good to synch the ash in the working process.
2. The dust air inlet shall be equipped with dust plate to prevent the dust from directly impacting the filter cylinder, thus extending the service life of the filter cartridge.
3. Compact structure and small footprint.
4. The filter cylinder is inclined and drawer installed, which can make the cartridge to be removed and replaced more conveniently.
5. For the general dust, the filter cartridge can be used for a long time without replacement, which saves the tedious work of the commonly used bag filter, and saves a lot of maintenance costs.
6. The YT-03LT filter cartridge is a modular combination, and its size is optional.The original combination can be expanded to increase the dust removal unit without much modification to the original equipment.
•DUST COLLECTOR APPLICATION
Cartridge Dust Collector is applied to shipbuilding, tobacco, mechanical casting, pharmaceutical, steel, petrochemical, chemical and other industries.
