1200 kg Dust Removal System Filter Cartridge Dust Collector with Simple Structure

Ask Lasest Price
Brand Name :	YITE
Model Number :	yt-10
Supply Ability :	5000 Piece/Pieces per Year
Price :	$3,690.00/pieces 1-2 pieces

Add to Cart

Product Details
Company Profile

1200 kg Dust Removal System Filter Cartridge Dust Collector with Simple Structure

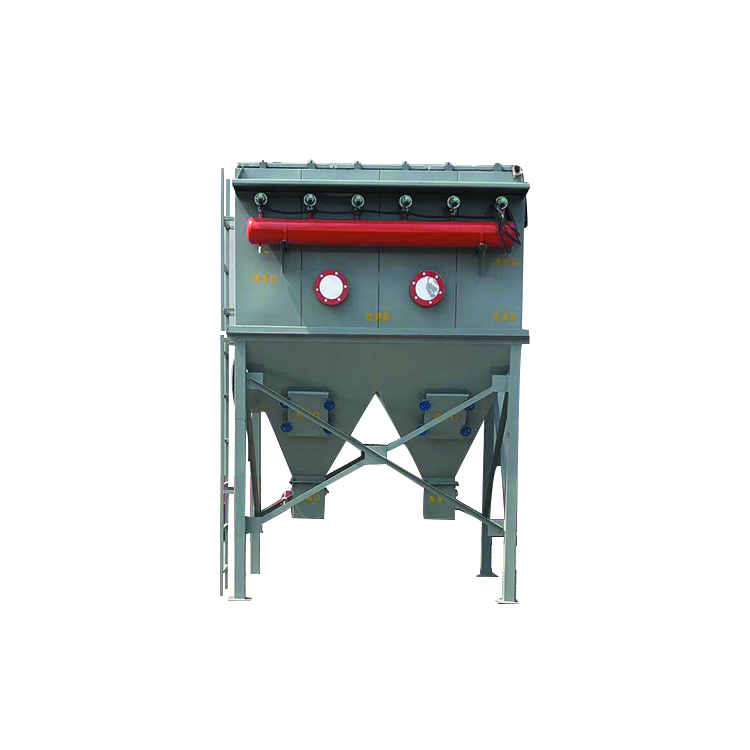

Industrial cartridge dust collector is made into the duct, the exhaust duct, enclosure, ash hopper, soot cleaning device, guide device, flow diversion distribution board, filter cartridge, and electric control device, similar structure of air box pulse bag dust removal. applied to shipbuilding, tobacco, mechanical casting, pharmaceutical, steel, petrochemical, chemical and other industries.

The working principle of Cartridge Dust Collector:

Normal operation: under normal operation, the dust into the air filter, and then through the filter element after

scattered by the guide plate, dust is blocked on the filter element surface,

filtered clean air into the clean air chamber by filter element,then expel it through the outlet pipe.

Filter cartridge deashing:

filter element can automatically and discontinuously cleaning soot,

at any given time only a set of filter element cleaning soot,high pressure air from inside to outside through the filter, removed the dust that adhere on the filter element surface,the dust fall into dust hopper, and then into the ash bucket.

Compressed air pressure is best adjusted to 6 kg/cm27 kg/cm2, satisfy the requirement of soot cleaning function be the standard value.

Our Advantages

1.High efficiency, 99.9% fine dust can be filtered.
2.Save space, compare with the bag dust collector, one filter can replace 7-9 bags, it has large filter area.
3. The filter can use for longer time, the material of filter is polyester fiber, besides, a dust board is installed the dust entrance,so that the dust can't impact filter directly.
4.Easy to maintain. Because the filter area is large, it's easy to install and change.
5.There are wheels on the bottom of the dust collector, can move everywhere freely.

Model	Air volume(m³/h)	Filter area(m²)	Cartridge(piece)	Body size(mm)	Weight(kg)
YT-03LTZ8	3300-7500	184	8	101621592159	1100
YT-03LTZ16	6600-15000	368	16	116421592159	1400
YT-03LTZ24	10000-22000	552	24	169521592159	1800
YT-03LTZ32	13500-30000	736	32	203221592159	2400
YT-03LTZ36	15000-33500	828	36	237721592159	3000
YT-03LTZ48	20000-45000	1104	48	313621592159	3500
YT-03LTZ64	28000-60000	1472	64	370021592159	5000

Model	Air volume (m³/h)	Filter area (m²)	Body size (mm) Power	Kw
YT-03LX9	6000~8000	90	170017003400	7.5/11
YT-03LX12	8000~10000	120	220017003400	11
YT-03LX18	12000~15000	180	320017003600	18.5
YT-03LTZ8	5500~7500	80	170013002900	7.5
YT-03LTZ12	8000~10000	120	170017003200	11
YT-03LTZ28	25000	360	370021004900	30
YT-03LTDZ30	2500~3000	36	12001601850	3.0
The models above are popular used, we accept customization. This is a highly customizable product, we usually provide separator plan for each client.

FAQ

Q1.Are you a factory and trading company?
A: We are a factory

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items ,
transportation ways and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they comefrom.
