Botou Yite Environmental Protection Machinery Manufacturing Co.,Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | YITE |
| Supply Ability : | 500 Piece/Pieces per Year absorption column price |
| Price : | $2,740.00/pieces 1-2 pieces |

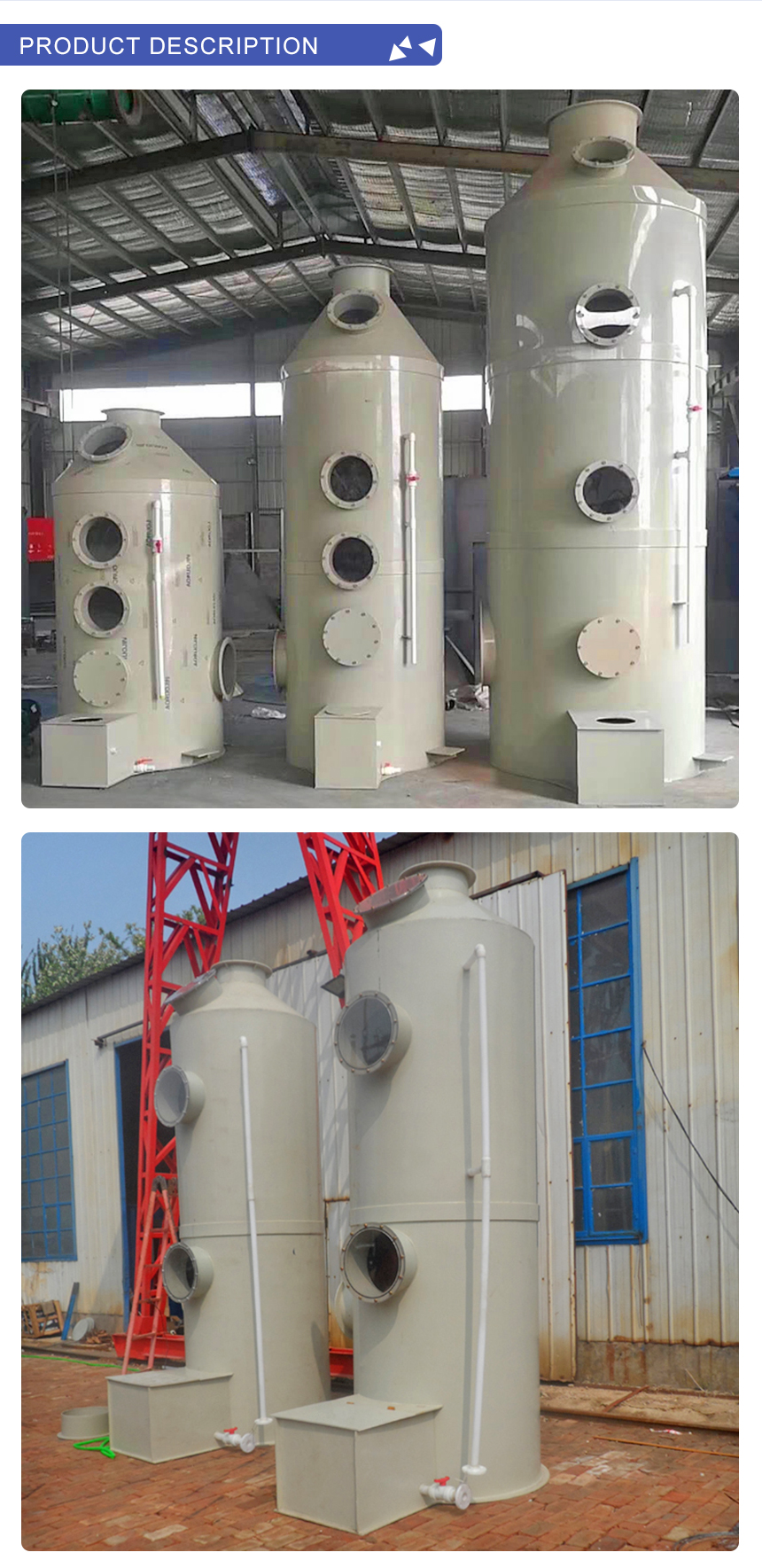

The acid mist exhaust gas is introduced into the purification tower through the air duct. After passing through the stuffing layer, exhaust gas and sodium hydrogenated absorbent are in full contact with gas and liquid to absorb and neutralize gas. After purification, the acid mist exhaust gas is dehydrated and removed by the smoke and dust board, and then discharged into the atmosphere by the fan. After pressurizing with water pump at the bottom of the tower, spray the absorbent on the top of the tower and then circulate to the bottom of the tower. The purified acid mist exhaust meets the national emission standards.
| We will design gas absorption column of appropriate specifications for you according to the working conditions provided by you. The following are the conventional models we have in stock for your reference: | ||||||
| model | Air volume(m³/h) | tower size(mm) | water tank size(mm) | thickness(mm) | pump power(kw) | tuyere size(mm) |
| YT-04PL600 | 1500 | φ600*2800 | 500*400*450 | PP-A/6 | 0.75 | φ200 |
| YT-04PL650 | 2000 | φ650*3000 | 500*400*450 | PP-A/6 | 0.75 | φ250 |
| YT-04PL800 | 3000 | φ800*3600 | 500*400*450 | PP-A/6 | 1.5 | φ315 |
| YT-04PL900 | 4000 | φ900*3600 | 500*400*450 | PP-A/6 | 1.5 | φ315 |
| YT-04PL1000 | 5000 | φ1000*3600 | 600*400*450 | PP-A/6 | 1.5 | φ400 |
| YT-04PL1100 | 6500 | φ1100*3800 | 600*400*450 | PP-A/8 | 2.2 | φ400 |
| YT-04PL1200 | 8000 | φ1200*4200 | 600*400*450 | PP-A/8 | 2.2 | φ450 |
| YT-04PL1400 | 10000 | φ1400*4200 | 600*400*450 | PP-A/8 | 2.2 | φ500 |
| YT-04PL1500 | 13000 | φ1500*4200 | 600*400*450 | PP-A/8 | 3 | φ500 |
| YT-04PL1650 | 15000 | φ1650*4200 | 600*500*450 | PP-A/8 | 3 | φ600 |
| YT-04PL1800 | 18000 | φ1800*4500 | 600*500*450 | PP-A/10 | 5.5 | φ650 |
| YT-04PL2000 | 20000 | φ2000*4500 | 700*500*500 | PP-A/10 | 5.5 | φ700 |
| YT-04PL2200 | 22000 | φ2200*4500 | 800*600*500 | PP-A/10 | 7.5 | φ800 |
| YT-04PL2400 | 25000 | φ2400*5000 | 1000*600*500 | PP-A/10 | 7.5 | φ800 |
| YT-04PL2600 | 30000 | φ2600*5000 | 1000*600*500 | PP-A/10 | 7.5 | φ1000 |
| YT-04PL2800 | 35000 | φ2800*5000 | 1200*600*500 | PP-A/10 | 11 | φ1000 |
| YT-04PL3000 | 40000 | φ3000*5000 | 1200*600*500 | PP-A/12 | 11 | φ1000 |
| YT-04PL3300 | 45000 | φ3300*5500 | 1500*600*500 | PP-A/12 | 15 | φ1200 |
| YT-04PL3600 | 50000 | φ3600*6000 | 1500*600*500 | PP-A/12 | 15 | φ1200 |
Advantages of gas absorption column:
1. High dust removal and desulfurization efficiency. When alkaline
washing is used, the desulfurization efficiency can reach 85%.
2. The equipment covers a small area and is easy to install.
3. The index of water consumption and electricity consumption is
low.
4. Corrosion resistance, no wear and long service life.
5. The equipment is reliable in operation and easy to maintain.
|
|
