Botou Yite Environmental Protection Machinery Manufacturing Co.,Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | YITE |
| Supply Ability : | 500 Set/Sets per Year |
| Price : | $4,000.00/pieces 1-2 pieces |
All of our products can be customized. Any sizes, shapes, designs,logos meet your requirement,before quote you the price ,we will be appreciated if you can provide the information below:
1.Are you dealing with dust or waste gas?
2. the air volume;
3. Composition and concentration of waste gas;
4. Dust type and particle size;
5. Temperature of working environment;
6.Please provide the working condition and scheme on site,lf you are not clearly , we will recommend for you.
With above information we can quote exact price immediately.

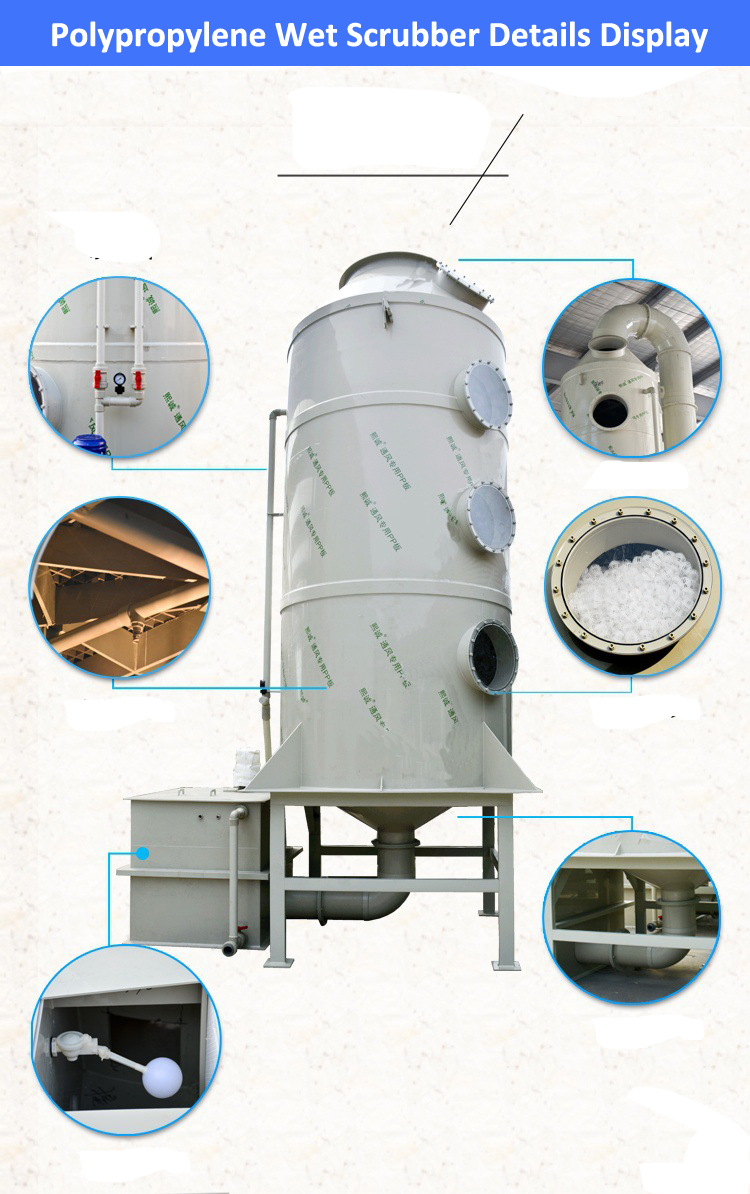

The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.
material classification:
Specification sheet:
| model | Air volume(m³/h) | tower size(mm) | water tank size(mm) | thickness(mm) | pump power(kw) | tuyere size(mm) |
| YT-04PL600 | 1500 | φ600*2800 | 500*400*450 | PP-A/6 | 0.75 | φ200 |
| YT-04PL650 | 2000 | φ650*3000 | 500*400*450 | PP-A/6 | 0.75 | φ250 |
| YT-04PL800 | 3000 | φ800*3600 | 500*400*450 | PP-A/6 | 1.5 | φ315 |
| YT-04PL900 | 4000 | φ900*3600 | 500*400*450 | PP-A/6 | 1.5 | φ315 |
| YT-04PL1000 | 5000 | φ1000*3600 | 600*400*450 | PP-A/6 | 1.5 | φ400 |
| YT-04PL1100 | 6500 | φ1100*3800 | 600*400*450 | PP-A/8 | 2.2 | φ400 |
| YT-04PL1200 | 8000 | φ1200*4200 | 600*400*450 | PP-A/8 | 2.2 | φ450 |
| YT-04PL1400 | 10000 | φ1400*4200 | 600*400*450 | PP-A/8 | 2.2 | φ500 |
| YT-04PL1500 | 13000 | φ1500*4200 | 600*400*450 | PP-A/8 | 3 | φ500 |
| YT-04PL1650 | 15000 | φ1650*4200 | 600*500*450 | PP-A/8 | 3 | φ600 |
| YT-04PL1800 | 18000 | φ1800*4500 | 600*500*450 | PP-A/10 | 5.5 | φ650 |
| YT-04PL2000 | 20000 | φ2000*4500 | 700*500*500 | PP-A/10 | 5.5 | φ700 |
| YT-04PL2200 | 22000 | φ2200*4500 | 800*600*500 | PP-A/10 | 7.5 | φ800 |
| YT-04PL2400 | 25000 | φ2400*5000 | 1000*600*500 | PP-A/10 | 7.5 | φ800 |
| YT-04PL2600 | 30000 | φ2600*5000 | 1000*600*500 | PP-A/10 | 7.5 | φ1000 |
| YT-04PL2800 | 35000 | φ2800*5000 | 1200*600*500 | PP-A/10 | 11 | φ1000 |
| YT-04PL3000 | 40000 | φ3000*5000 | 1200*600*500 | PP-A/12 | 11 | φ1000 |
| YT-04PL3300 | 45000 | φ3300*5500 | 1500*600*500 | PP-A/12 | 15 | φ1200 |
| YT-04PL3600 | 50000 | φ3600*6000 | 1500*600*500 | PP-A/12 | 15 | φ1200 |

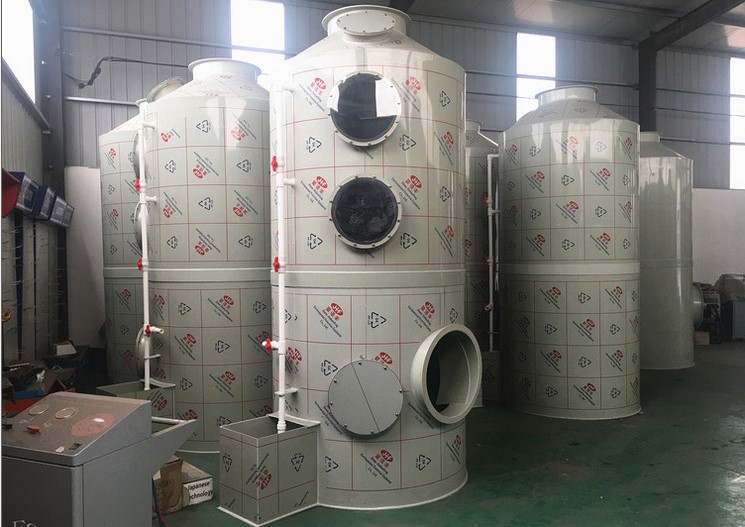

Application pictures:
Adventages:
1.The efficiency of dust removal and desulfurization is high and
the efficiency of desulfurization can reach 85% when using alkaline
washing water.
2.The absorption column is small and easy to install.
3.Low water consumption and low power consumption.
4.The equipment is reliable, simple and convenient to maintain.
1.Products have passed ISO9001
2.We have excellent after-sale team to provide excellent after-sales service.
3.Guarantee 24 hours to reply to the buyer in time
Q1.Are you a factory and trading company?
A: We are a factory
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
|
|
