High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine

Product Description

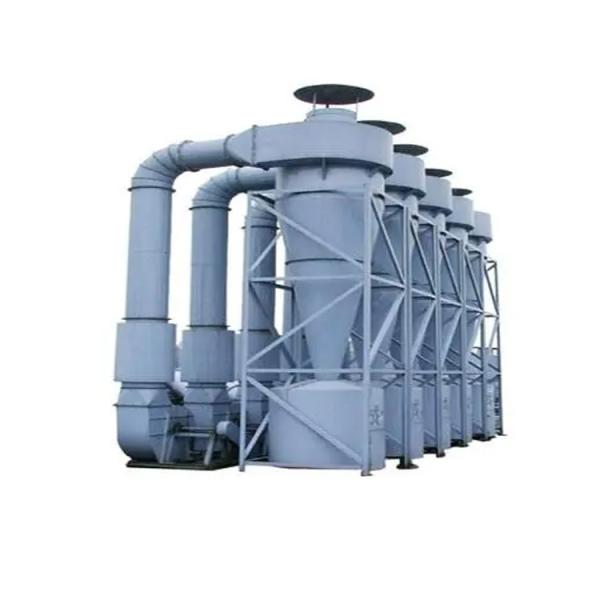

High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine






working principle:
Cyclone dust collector is used for the separation of gas-solid system or liquid-solid system equipment.The working principle is
the rotation motion caused by the tangential introduction of air flow, which makes the solid particles or liquid drops with large
inertia centrifugal force separate from the outer wall surface.
Cyclone dust collector type
Model
AIr Volume
size(mm)
weight(kg)
YTCY-01
750-1060m³/h
460*390*1380
45
YTCY-02
1460-2060m³/h
556*545*1880
85
YTCY-03
2280-3230m³/h
711*700*2701
130
YTCY-04
4020-5700m³/h
911*910*3040
220
YTCY-05
5500-7790m³/h
1071*1605*3540
300
Main Features: Cyclone dust collector is applicable to the removal of non-viscous and non-fibrous dust, which is mostly used to remove particles above 5μm, and the parallel multi-tube cyclone deduster device also has the dust removal efficiency of 80-85% for particles at 3μm.
High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine
High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine
High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine
High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine
High Capacity 130 kg Industrial Cyclone Separator Dust Collector for Polishing Machine
